SPECIAL FEATURES FOR YASH MAKE JIGGER

The new age of fully automatic electronics jigger dyeing machine maintain the tension, speed and temperature of the fabric using modern technology (PLC with colour screen display). Our jigger provide many advanced features, some of which are:

  • Fully Automatic electronics jigger dyeing machine is easy to operate & maintenance free compared with      hydraulic & mechanical driven jigger dyeing machine.
  • Colour screen for indication of all valves, main tank volume in liter, colour tank volume in liter, set
     speed, actual speed, tension & temperature of main tank.
  • Constant tension of the fabric at any speed & batch diameter can be adjustable from 5 to 50 kg.
  • Constant speed of the fabric at any batch diameter can be adjustable from 5 to 125 mtrs./min
  • Automatic temperature control through direct heating and indirect heating.
  • Smooth fabric running due to individual electronic drive of two main rolls.
  • Pendulum facility to avoid unbalancing of batch.
  • Bubbling sensor is used to measure the volume of colour tank.
  • Automatic reversal of the fabric.
  • Linear, progressive and regressive dosing can be achieve using PLC. We can provide facility to make our      own graphics for dosing.
  • Closed construction of the machine prevents the heat loss.
  • Roof heating prevents condensation.
  • Pneumatic door opening on the both sides of the machine ensures smooth opening & closing
     of the door.
  • Circulation & spray system through centrifugal S.S. pump ensures trouble free dyeing.

PLC AND AUTOMATION

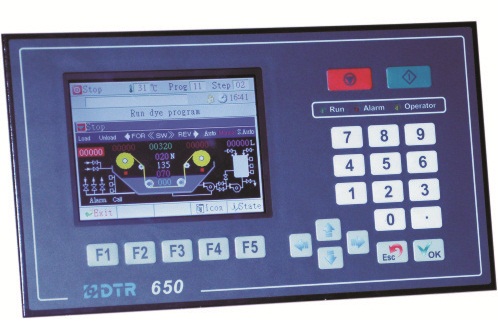

DTR 650 DYEING MACHINE CONTROLLER

SPECIFICATION • Operation Voltage 24VDC • Operation Temp. 5~45°C • Display Panel 320 x 240 Dots TFT 256K Colour • Key Board 24 • PT100 Input 2(max6) • Analog Input 4(max 12) • Analog Output 4(max 12) • Digital Input 32 (max 72) • Digital Output 32 (max 96) • PID Control Loops 8 • Communication Port RS-232/0-20mAx 1 :RS485 x2 • Memory Card Connector PCMCIA Standard • Program Memory 15000 Steps • Max Program 200 • Max Step 200 • Dimension 302W x 175H x 90D mm • Cut Out Dimension 282W x 159D mm • Expansion Device DTR-PLC32, PLC32D

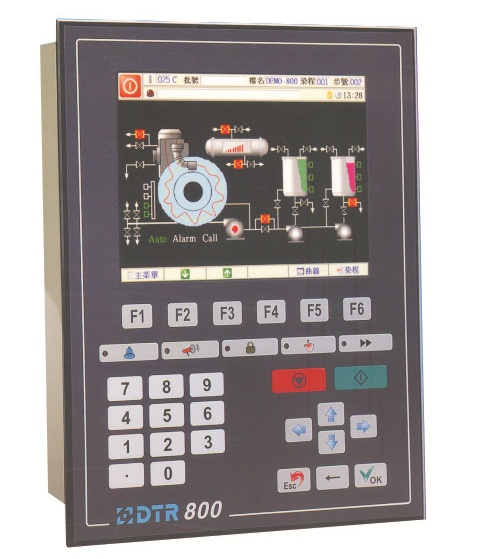

DTR 800 DYEING MACHINE CONTROLLER

SPECIFICATION • Operation Voltage 24V DC, 1A • Operation Temp. 5~45°C • Display Panel 8" 800 x 600 TFT 256K Colour / Touch Screen • PT100 Input 4(max. 8) • Analog Input 8(max. 16) • Analog Output 8(max. 16) • Digital Input 48(max. 112) • Digital Output 48(max. 112) • PID Control Loops 16 • Communication Porta RS-232/0~20mAx1 RS485 x2 RS485 x1 • USB Port 1 • Dimension 236W x 306H x 90D m.m. • Cut Out Dimension 214W x 284D mm

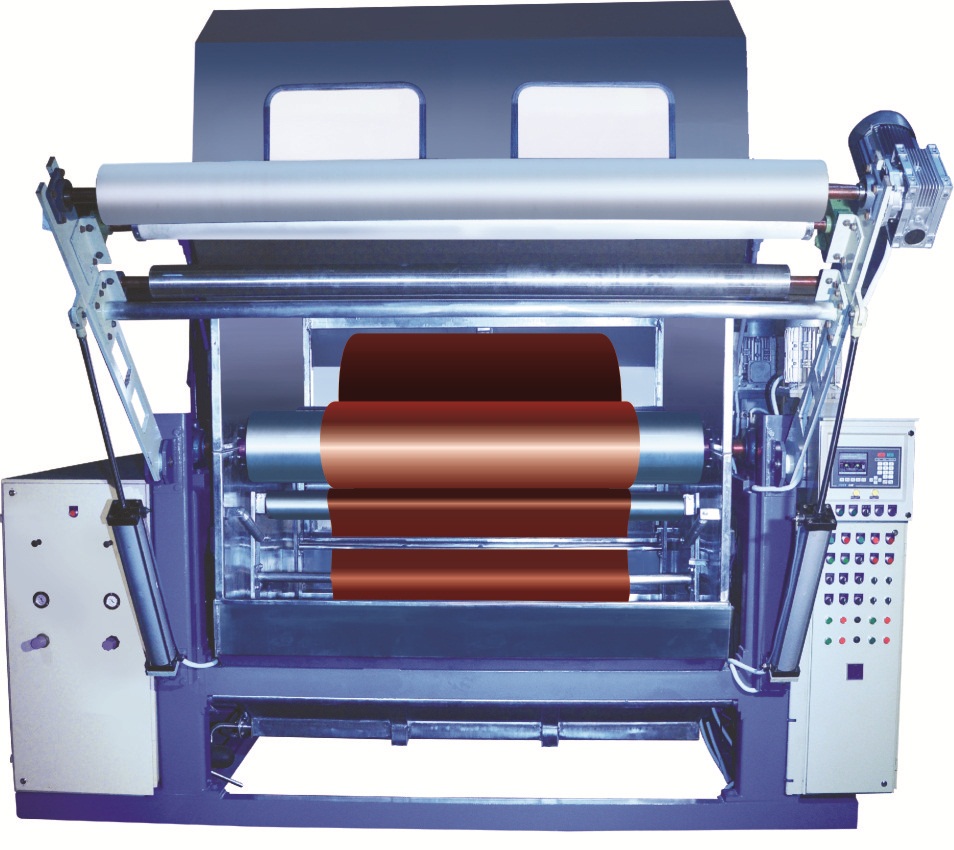

FULLY AUTOMATIC ELECTRONICS JIGGER DYEING MACHINE :

              "YASH MICRO CONTROLS", Ahmedabad is a joint venture between DTR INDUSTRIAL & COMMERCIAL CO., LTD. (HONGKONG). The company owns many year's manufacturing experience in completing dyeing and printing machine automation with powerful technical scientific research team, advanced production equipment, perfect production management, after-sales service system, and establishing a set of complete product inspection system. Our goal is to offer the first-rate products and after-sales service.

              Our company sticks to the business ides customer foremost, faith-centered and service for survival and innovation for development in India. We have perfect sales network channels and our products are sold nationwide. Our company is offering considerate and fast professional support and service to customers. Quality comes from character, innovation pushes forward development. Our Company will continue to march on its way of specialization, individualization, mass production, standardization, create professional, excellent dyeing and finishing equipment for customers.

              Yash make electronics fully automatic jigger dyeing machine is an easy to handle and programme easily with manual - semi automatic - fully automatic selection through PLC (Programmable Logic Controller)

Applications

Atmospheric jigger dyeing machine is mostly used for natural and regenerated fibers such as cotton, linen, silk, acetate and rayon as well as some synthetic fibre such as nylon

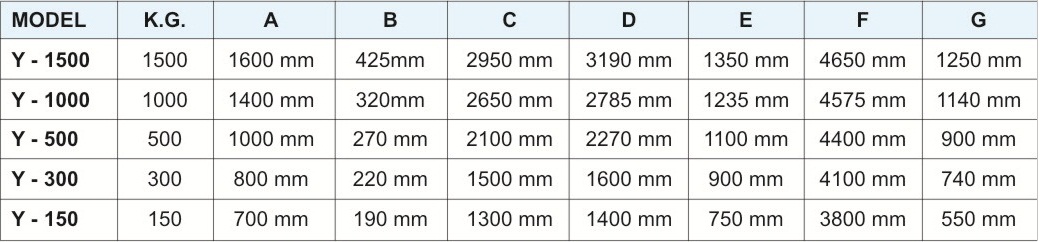

DUE TO CONTINUOUS DEVELOPMENTS, DIMENSIONS & OTHER DETAILS IN THIS CATALOUGE MAY CHANGE WITHOUT NOTICE.
